How To Run Tests With Cypress and Cucumber

image-4-768x432

How To Run Tests With Cypress and Cucumber

How To Run Tests With Cypress and Cucumber

This blog was originally published at https://www.lambdatest.com/learning-hub/cypress-cucumber-tutorial

Overview

Cucumber is a well-known Behavior-Driven Development (BDD) framework that lets developers implement (or perform) end-to-end testing . The Cucumber framework is fundamentally designed to assist developers in writing acceptance test cases that are easily understood by any user accessing the software.

Test cases are written based on the behavior of the application’s functions. They are written in a language that is easily understood by normal users. This framework feature makes it a popular BDD testing tool connecting the gap between the product owners and the developers.

Another reason the framework is so popular as a BDD testing tool is that the framework uses a language called Gherkin. Gherkin is the language used by Cucumber developers to define tests. Since it is written in plain English, it is easy to understand even for a non-technical user.

The combination of Cypress and Cucumber provides a robust framework that permits you to form purposeful tests in a simple method.

What is BDD?

Behavior-Driven Development (BDD) is a development approach that promotes communication between team members. This collaborative approach brings together the business and technical aspects of projects. BDD simulates how an application should behave from the end user’s perspective. The main goal of implementing BDD testing is to improve collaboration between developers, QA, DevOps, PO, BA, and other stakeholders.

BDD enables teams to communicate requirements better, detect problems early, and easily maintain software over time. The first is to make sure the entire team understands the requirements. Then teams can focus on preventing potential problems rather than fighting fires if they are found later. BDD ensures that everyone is in the loop from the beginning and throughout the process, which helps effective and quality communication between team members.

The below diagram gives us a summary of the steps involved in the BDD workflow.

BDD frameworks in the market

Some of the available BDD frameworks in the market are Cucumber, Quantum, SpecFlow, JBehave, Codeception, and others.

  • Cucumber is one of the market’s foremost well-liked BDD testing frameworks. Cucumber supports a variety of different programming languages, including Java and JavaScript.
  • Quantum is a Java-based open-source BDD testing framework designed by Perfecto.
  • SpecFlow is the most in-demand .NET BDD framework developed by TechTalk.
  • JBehave is a foremost Java-based BDD framework and other JVM languages, such as Groovy, Kotlin, and Scala.
  • Codeception is a famous PHP framework inspired by BDD. Codeception is a full-stack testing framework that achieves unit testing, API testing, and functional testing in addition to BDD testing.

What is Cucumber?

Cucumber is an open-source framework that supports BDD. Cucumber supports the Gherkin language, and in Gherkin, we can write our use cases in plain English that the tool reads easily. Cucumber reads the test written in Gherkin and verifies that the code works as it should. It does this by working on Gherkin scenarios and steps. Once all test cases are executed, a Cucumber report is generated with each step and scenario with pass and fail results.

What is Gherkin?

Gherkin is a language that developers use to write tests in Cucumber. Since Gherkin uses plain English, it’s meant to define use cases for a software system so that almost anyone can read and understand the use cases. The syntax of Gherkin promotes behavior-driven development because it allows developers, managers, business analysts, and other stakeholders to understand the project’s requirements and the life cycle.

Use of Gherkin language in writing the story by POs, BA’s makes stories more focused and easy to understand for the technical and non-technical side. Also, it becomes very easy for QA people to write their automation script because now requirements are more clear compared to when we are not using Cucumber with Gherkin syntax.

Gherkin uses easy English-like language that you could use to define the requirement and acceptance criteria. The most important basic format is as follows.

So, how does it work? First, you have to explain the feature that we want to implement, usually in the classic form of a user story: As a <person>, I Want <feature>, For <Business Value>.

Then you can define one or more business scenarios, meaning the overall behavior you want to receive with the user story.

Example:

Feature: Payments with Master Card.

As a Master Cardholder,

I Want to use my Master Card,

For paying my online bill.

Scenario: The Master Cardholder uses the Master card for online payment.

Given I am a Master Card Holder.

When I make online payments with my Master Card.

Then My master card is accepted

Gherkin Syntax

Next, let’s take a look at some of the steps in the Gherkin tests. These are Given, When, Then, And, or But.

Given

The objective of the Given steps is to get the system to a known state before the user (or an external system) starts interacting with the system (in the When steps).

Suppose we have to login into a site https://ecommerce-playground.lambdatest.io/  So before login, we have to open the login screen so the user can login into the system. So we have to bring the system into the state where he can start interacting with the system (in the When steps).

Some examples of Given:

Example 1:

Given I am on the “login page of lambdatest”

Example 2:

Another example may be supposed we want to create records into the database or set up the database, so in the Given statement, we can give the below detail.

Given Given there are no users on-site.

Given Given the database is clean.

When

When steps are action steps. The purpose of the When steps is to describe the key action the user performs. It’s suggested that you only have one When step for each scenario.

Let’s take the example of the LambdaTest e-commerce site.

Given I am on the “login page of lambdatest”

When I enter “the username” with “[email protected]

When I enter the “password” with “123456”

When I press “login”

Then

Then steps are the outcome steps. Then syntax can only be used in conjunction with the When syntax. In the Then section, we can describe what you want the system to do so that it can be compared to how the software works in practice.

Let’s take the example of the LambdaTest e-commerce site.

Given I am on the “login page of lambdatest”

When I enter “the username” with “[email protected]

When I enter the “password” with “123456”

When I press “login”

Then user should be logged into the application

And, But

If you have several Given, When or Then steps then in that case you can use And, But. This helps keep your documentation managed and readable.

Example 1:

Scenario: Multiple Givens

Given one thing

Given another thing

Given yet another thing

When I open my eyes

Then I see something

Then I don’t see something else

We can add And, But in above example

Scenario: Multiple Givens

Given one thing

And another thing

And yet another thing

When I open my eyes

Then I see something

But I don’t see something else

Example 2:

Let’s take the example of the LambdaTest e-commerce site.

Given I am on the “login page of lambdatest”

When I enter “the username” with “[email protected]

When I enter the “password” with “123456”

When I press “login”

Then the user should be logged into the application

We can add And, But in above example

Given I am on the “login page of lambdatest”

When I enter “the username” with “[email protected]

And I enter the “password” with “123456”

And I press “login”

Then the user should be logged into the application

Background

Background allows you to add even more context to the scenarios in a feature. The Background is run before each of your scenarios. There can only be one background step for each feature.

Feature: Search and Edit Article

Background:

Given the user in the login page

When I enter “the username” with “Admin”

And I enter the “password” with “123456”

And I press “login”

Then the user should be logged into the application

Scenario: Search the blog

When I search blog “Cypress “

Then I should see “Cypress text in searched results”

Scenario: Edit the blog

When I edit the existing Post

And Click on Submit button

Then I should see “Your article was published”

Scenario Outline

The script outline runs once for each line of the example section except the header line. The steps of a scenario outline provide a template never executed directly. The scenario overview runs once for each row in the Examples section below (not counting the first row of the column headers).

Scenario Outline: Login into the Application

Given I am on the “login page of lambdatest”

When I enter <username>

And enter <password>

Then the user should be logged into the application

Examples:

| username | password |

[email protected] | ba@8838 |

[email protected] | b3a@8$3 |

[email protected] | xSba@3e3 |

Table

Tables are used for specifying a larger data set — usually as input to a Given or as expected output from a Then.

Examples:

| username | password |

[email protected] | ba@8838 |

[email protected] | b3a@8$3 |

[email protected] | xSba@3e3 |

GitHub Repo: https://github.com/LambdaTest/hyperexecute-cypress-v10-sample

In the next section of this Cypress Cucumber tutorial, let’s see how we can implement the BDD framework on cloud Cypress Grid.

In this Cypress Cucumber tutorial, we have covered two ways of running the test cases one by running the test case locally and another by running the Cypress test case in the LambdaTest cloud Grid.

Once you get used to requirements and user stories being written in Cucumber, the next step is transforming these .feature files into an automation script. Below are some steps we commonly use to automate with Cucumber.

  1. Product owner and business analyst work together to formulate the feature’s requirements.
  2. Define the acceptance criteria.
  3. QA Team converts Gherkin statements into automated tests (.feature file).
  4. QA Team executes .feature file.
  5. QA Team prepares automation scripts using .feature file.
  6. Script execution and test results.

We have several frameworks, from Cucumber to Behave, that can automate your Gherkin acceptance criteria.

For automating Gherkin acceptance criteria in this tutorial on Cypress Cucumber, we are using Cucumber with Cypress.

How to set up Cypress to test locally?

In this section of this Cypress Cucumber tutorial, we will install and set up Cypress to perform testing on the local Cypress Grid.

Installing Cypress

Below are the steps to install Cypress. However, you can go through this blog to get started with Cypress testing.

Step 1: Create a folder and Generate package.json.

  1. Create a project, naming it cypress_Cucumber_BDD.

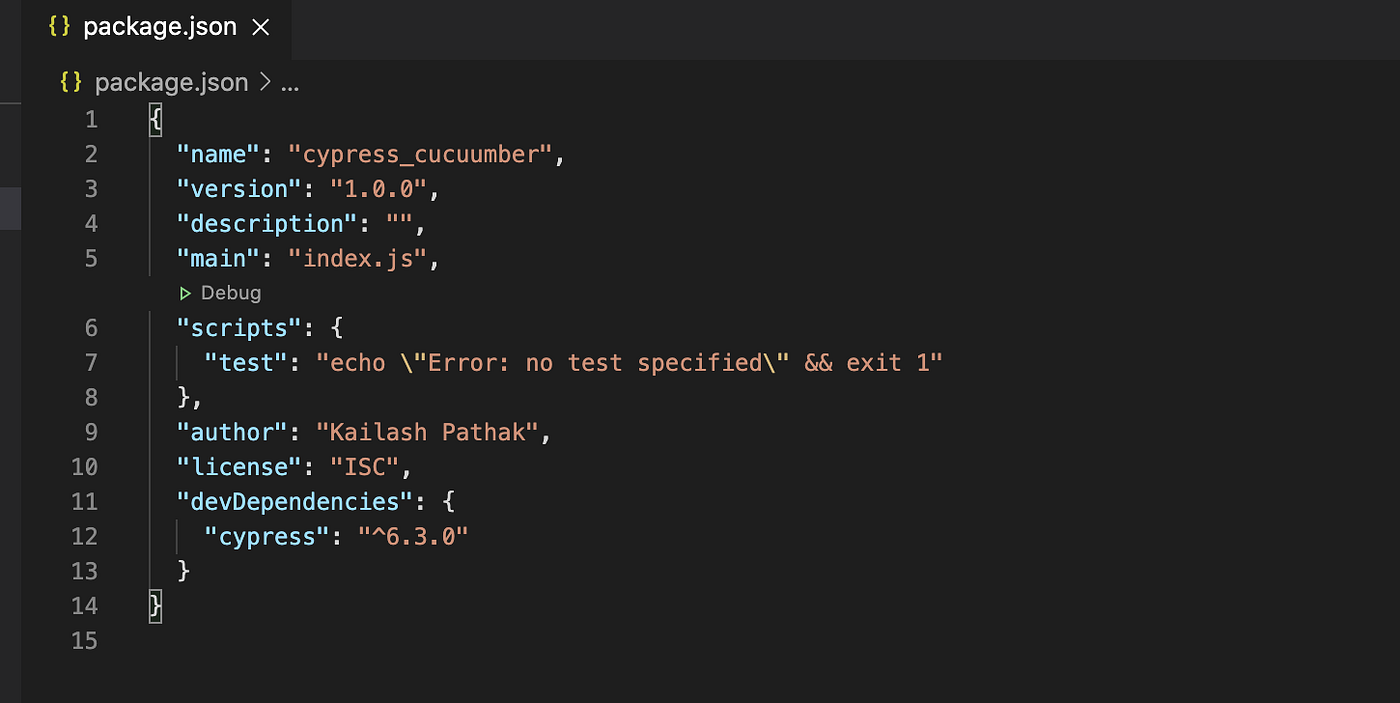

  2. Use the npm init command to create a package.json file.

Step 2: Run the below command to install Cypress.

  1. In the project folder, run > npm install — save-dev [email protected].
  2. We can see below after installation that Cypress version 9.2.1 is reflected below. The latest version of Cypress is 11.0.1.

Create Test and Page Class

Step 1: Create a folder under the Integration folder.

  1. Create the folder “cucumber” under the folder Integration, Integration -> cucumber.
  2. Under LambdaTest, create two more folders with the names Pages and Tests.

Step 2: Create two sub-folders.

  1. Create two sub-folders under the Pages folder with the name (LoginPage and SearchProductPage).
  2. Create two sub-folders under the Tests folder with the name (LoginTest and SearchProductTest).

Step 3: Create .spec files under Pages and Tests.

You can learn more about Page Object Model (POM) through this blog on Cypress Page Object Model.

Code Walkthrough

Below is the code detail for the Page and Test class. In this Cypress Cucumber tutorial, we are covering two scenarios; we will execute the test case in Cypress version 9.2.1.

Implementations (Test Scenario — 1)

To demonstrate the usage of Cypress, we will first demonstrate the following test scenario.

  1. Open the URL https://ecommerce-playground.lambdatest.io/index.php?route=account/login.
  2. Enter your email address.
  3. Enter the password.
  4. Click on the Login button.
  5. Verify the title of the page.

Create LoginPage.spec

In the below code, we can see we first login into the application and then verify the page title.

/// <reference types=”cypress” />

import login from “../../Pages/LoginPage/LoginPage.spec”;

Given(“I navigate to the Website”, () => {

login.enterURL();

});

When(“I entered valid credential”, (datatable) => {

datatable.hashes().forEach((element) => {

login.enterUserNamePassword(element.email, element.validpassword);

});

});

And(“User click on sign in button”, () => {

login.clickSubmitButton();

});

Then(“Validate the title after login”, () => {

login.verifyPageTitle();

});

Implementation (Test Scenario — 2)

Here is the test scenario:

  1. Open the URL https://ecommerce-playground.lambdatest.io/index.php?route=account/login.
  2. Enter your email address.
  3. Enter the password.
  4. Click on the Login button.
  5. Verify the title of the page.
  6. Search the product.
  7. Verify the product after the search.

Create SearchProductTest.spec

In the code below, we can see we first log into the application, verify the page title, and finally search for the particular product on the site.

/// <reference types=”cypress” />

import login from “../../Pages/LoginPage/LoginPage.spec”;

import searchProduct from “../../Pages//SearchProductPage/SearchProductPage.spec”;

Given(“I navigate to the Website”, () => {

login.enterURL();

});

When(“I entered valid credential”, (datatable) => {

datatable.hashes().forEach((element) => {

login.enterUserNamePassword(element.email, element.validpassword);

});

});

And(“User click on sign in button”, () => {

login.clickSubmitButton();

});

Then(“Validate the title after login”, () => {

login.verifyPageTitle();

});

When(“User search the product”, () => {

searchProduct.SearchProduct(“VAIO”);

});

Then(“Validate the product after search”, () => {

searchProduct.verifyProduct(“Sony VAIO”);

});

Create LoginPage.spec.js

​​/// <reference types =”cypress”/>

class LoginPage {

enterURL() {

cy.visit(

“https://ecommerce-playground.lambdatest.io/index.php?route=account/login”

);

}

enterUserNamePassword(username, password) {

cy.get(‘[id=”input-email”]’).type(username);

cy.get(‘[id=”input-password”]’).type(password);

return this;

}

clickSubmitButton(username, password) {

cy.get(‘[type=”submit”]’).eq(0).click();

return this;

}

verifyPageTitle() {

return cy.title().should(“eq”, “Search -”);

}

clickOnLogo() {

cy.get(‘[title=”Poco Electro”]’).click();

cy.wait(2000);

}

scrollToTheProduct() {

cy.get(‘[title=”iPod Touch”]’).eq(0).scrollIntoView().click();

}

}

const login = new LoginPage();

export default login;

SearchProductPage.js

​​/// <reference types =”cypress”/>

class SearchProduct {

SearchProduct(searchProductName) {

cy.get(‘[name=”search”]’).eq(0).type(searchProductName);

cy.get(‘[type=”submit”]’).eq(0).click();

}

verifyProduct(productName) {

cy.contains(productName);

}

}

const searchProduct = new SearchProduct();

export default searchProduct;

GitHub

How to set up Cucumber and create a feature file?

In this section of this Cypress Cucumber tutorial, we will install and set up Cucumber and create a feature file to perform testing.

Installing Cucumber

Step 1: To install Cucumber, run this command.

npm install — save-dev cypress-cucumber-preprocessor

Terminal output:

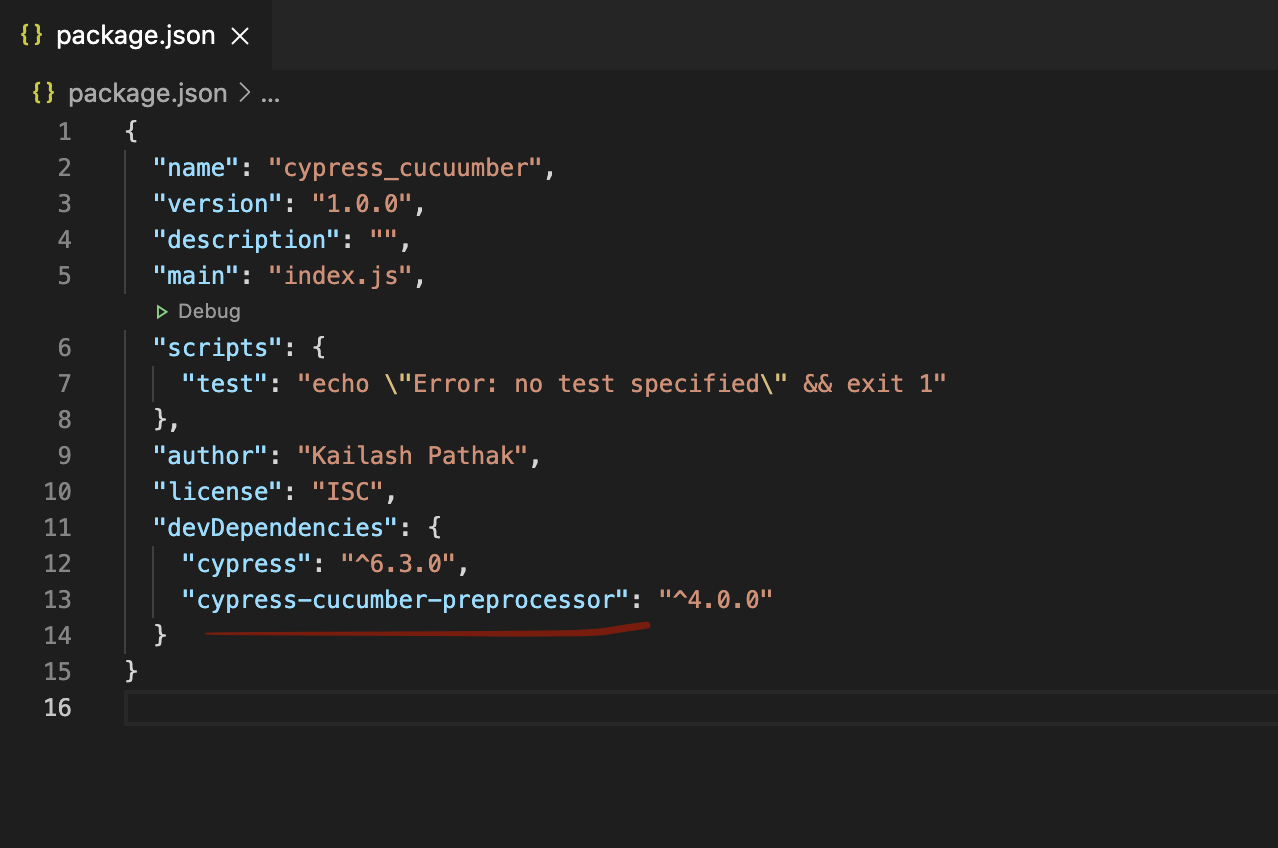

Once installed, Cucumber devDependency in package.json can be seen below.

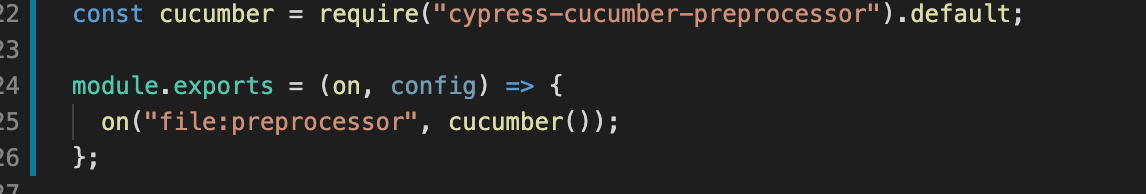

Step 2: Add below code snippet in cypress > plugins > index.js.

const cucumber = require(“cypress-cucumber-preprocessor”).default;

module.exports = (on, config) => {

// `on` is used to hook into various events Cypress emits

// `config` is the resolved Cypress config

on(“file:preprocessor”, cucumber());

};

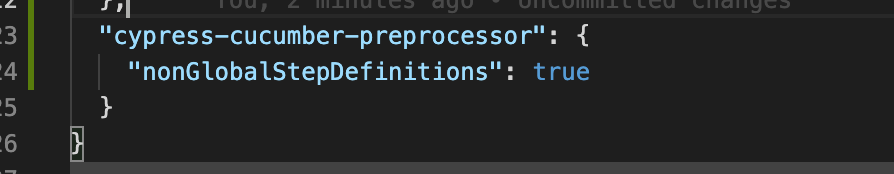

Step 3: Add the below code snippet in package.json.

“cypress-cucumber-preprocessor”: {

“nonGlobalStepDefinitions”: true

}

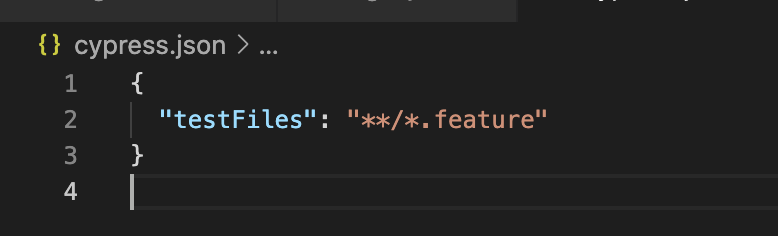

Step 4: Add the below line in cypress.json.

{

“testFiles”: “**/*.feature”

}

Create a feature file

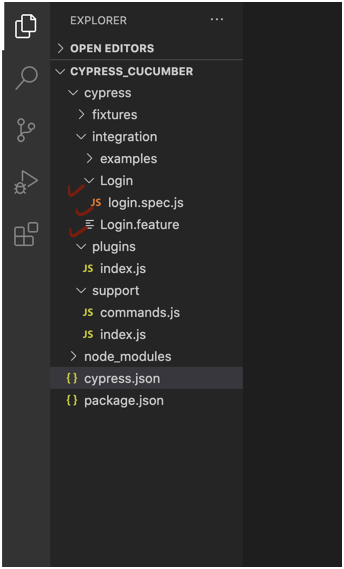

After creating Test and Page folders, the next step is to create a .feature file.

At the Tests folder level, create the feature files with the name LoginTest.feature and SearchProductTest.feature.

LoginTest.feature

Feature: I want to login into the site with valid data

Background:

Given I navigate to the Website

Scenario: Login as new sign up user with valid data

When I entered valid credential

| email | validpassword |

[email protected] | lambdatest |

And User click on sign in button

Then Validate the title after login

SearchProductTest.feature

Feature: I want to login into the site with valid data

Background:

Given I navigate to the Website

Scenario: Login as new sign up user with valid data

When I entered valid credential

| email | validpassword |

[email protected] | lambdatest |

And User click on sign in button

Then Validate the title after login

Scenario: Search the Product

When User search the product

Then Validate the product after search

| product | productaftersearch |

| VAIO | Sony VAIO |

How to run Cypress test cases locally?

You can run the test case from the command line or Cypress runner. However, in this section of this Cypress Cucumber tutorial, we will execute test cases using Cypress runner.

  1. ​​Open the Cypress test runner with the following command.

yarn run cypress open

  1. The above command will open the Cypress test runner with the existing test cases. From Cypress runner, we can select the browser you want to run the test cases.

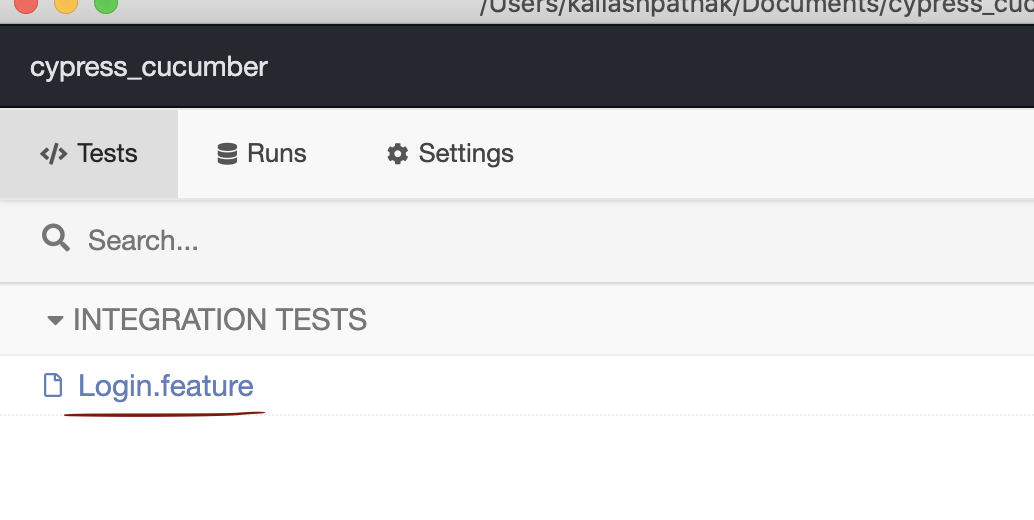

  2. In the below screenshot, we can see both test case .feature files displaying in the Cypress test runner.

Running the first test case

  1. Clicking on the first .feature, the first test case starts executing the test case.

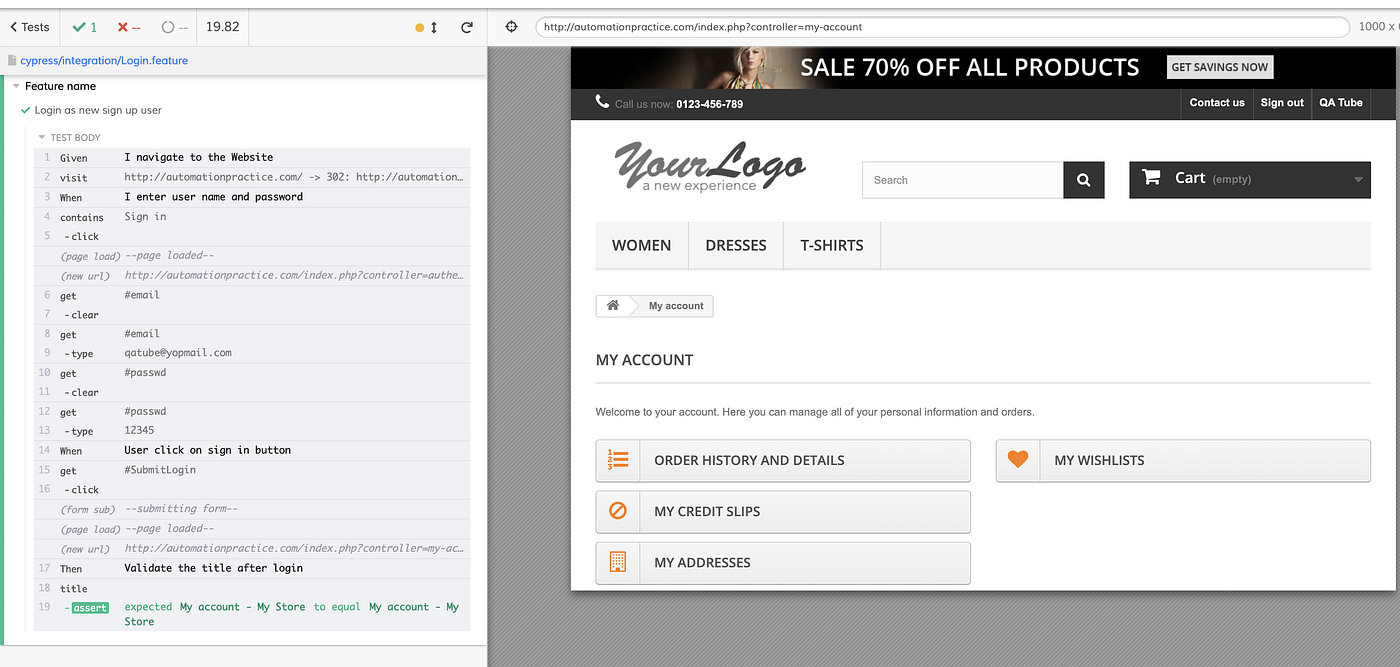

  2. Below screenshot shows when the test case runs successfully.

In the below screenshot, we can see steps under GIVEN, WHEN, AND, and THEN executed successfully.

Running the second test case

Clicking on the second .feature, the second test case starts executing the test case. In the below screenshot, we can see products are loading, and the test case for product search is passed successfully.

Also, we can see steps under GIVEN, WHEN, AND, and THEN executed successfully.

How to run tests on the cloud Cypress grid?

In this section of this Cypress Cucumber tutorial, we will execute the test cases on LambdaTest’s cloud Cypress grid. LambdaTest is a cloud-based cross browser testing platform that permits you to accomplish Cypress end-to-end testing for web applications across multiple browsers, operating systems, and devices.

Setting up LambdaTest for Cypress test case execution

Step 1: Install the CLI

Setup LambdaTest using Cypress CLI command via npm. LambdaTest’s command-line interface permits you to run your Cypress UI tests on LambdaTest.

npm install -g lambdatest-cypress-cli

Step 2: Generate lambdatest-config.json

Under the root folder, configure the browsers on which we want to run the tests. Use the init command to generate a sample lambdatest-config.json file or create one from scratch. Use the below command.

lambdatest-cypress init

In the generated lambdatest-config.json file, fill in the required values in the section lambdatest_authbrowsers, and run_settings to run your tests.

Running the Cypress tests on LambdaTest cloud

To get accurate testing results, you must run Cypress tests on real browsers and OS. The best way to do this is by using LambdaTest’s continuous quality platform. This way, you can accelerate your go-to-market delivery by performing Cypress parallel testing on 40+ browser versions across Windows and macOS.

Run the below command to execute the test case on LambdaTest.

lambdatest-cypress run — sync=true

As we run the above command, test case execution starts in the LambdaTest platform in different browsers.

The screenshot below shows that all test cases are passed in the LambdaTest platform.

In the below screenshot, we can see LoginTest.feature file runs successfully.

In the below screenshot, we can see SearchProductTest.feature file runs successfully.

You can also navigate through the New Analytics Dashboard, which allows you to create custom dashboards and quickly drill into various metrics by creating a custom view. The metrics and KPIs most important to you can be embedded in a dashboard. This will give you at-a-glance insights into your test details on the dashboard.

Take the first steps toward mastering your Cypress automation skills with the Cypress 101 certification. This certification is a great way to learn how to use Cypress and how to use end-to-end testing in your development workflows.

Wrapping Up

Cucumber is a well-known robust Behavior-Driven Development (BDD) framework that enables you to write test cases that anybody can apprehend, regardless of their technical knowledge. In this Cypress Cucumber tutorial, we have seen how the combination of Cypress and Cucumber provides a robust framework that permits you to form purposeful tests in a simple method.

Cucumbers can also easily integrate with powerful cloud testing platforms like LambdaTest, a cloud-based cross browser testing tool that allows you to perform cross-browser testing for web applications across over 3000 browsers, operating systems, and devices.

Leave a Comment

Your email address will not be published. Required fields are marked *

Recent Posts

Handling Shadow DOM Using Cypress

The idea of componentization has completely changed how we design and maintain user interfaces in the field of web development. The advent of Shadow D
Read More

Gear up for upcoming Conferences of 2024! ✨✨

Gear up for our upcoming Conferences of 2024! ✨ ✨ #TheTestTribe #SoftwareTesting #Testers #Community #Worqference #Worqference2024 #QonfX
Read More

Enhance Testing Workflows with HTML Allure Reports in Cypress

Allure Report is the utility that processes test results collected by a compatible test framework and produces an HTML report. Allure Report is i
Read More
